Products description

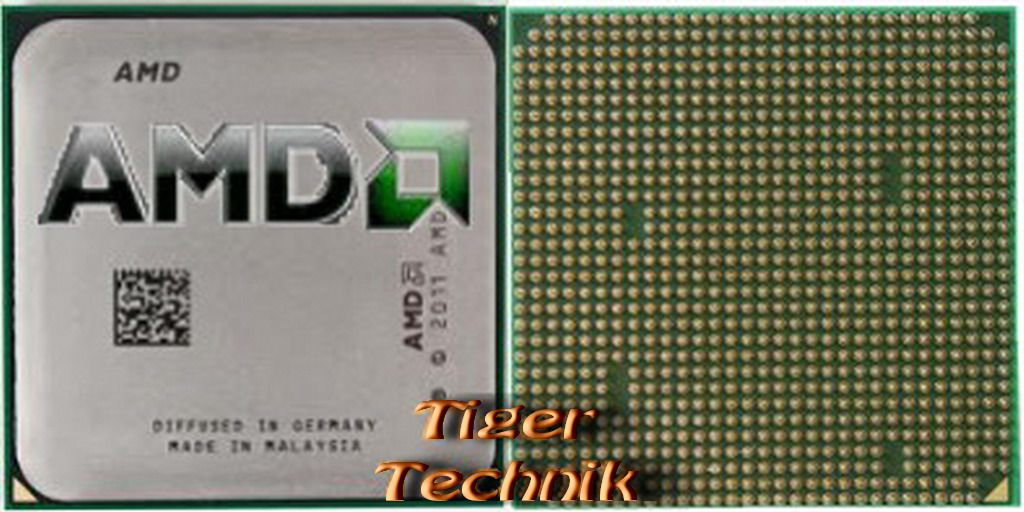

CPU AMD Athlon 64 X2 3800+ ADO3800IAA5CZ 2x 2GHz Dual Core Sockel AM2
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Athlon 64 X2 |
Model number | 3800+ |
CPU part numbers | ADO3800IAA5CZ is an OEM/tray microprocessor; ADO3800CZBOX is a boxed microprocessor with fan and heatsink |
Stepping code | CCB6F |
Frequency | 3800+ (rated); 2 GHz / 2000 MHz (real) |
Clock multiplier | 10 |
Package | 940-pin organic micro Pin Grid Array (micro-PGA) |
Socket | Socket AM2 |
Architecture / Microarchitecture | |
Instruction set | x86 |
Microarchitecture | K8 |
Processor core | Windsor |
Core stepping | JH-F3 |
CPUID | 40F33 |
Manufacturing process | 0.09 micron; 164 million transistors |
Data width | 64 bit |
The number of CPU cores | 2 |
The number of threads | 2 |
Floating Point Unit | Integrated |
Level 1 cache size | 2 x 64 KB 2-way set associative instruction caches; 2 x 64 KB 2-way set associative data caches |
Level 2 cache size | 2 x 512 KB 16-way set associative exclusive caches |
Physical memory | 1 TB |
Virtual memory | 256 TB |
Multiprocessing | Uniprocessor |
Extensions & Technologies | MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions; SSE2 / Streaming SIMD Extensions 2; SSE3 / Streaming SIMD Extensions 3; AMD64 / AMD 64-bit technology; AMD-V / AMD Virtualization technology; |
Security Features | EVP / Enhanced Virus Protection |
Low power features | Cool'n'Quiet technology; Halt state; Stop Grant state |
Integrated peripherals / components | |
Memory controller | The number of controllers: 1 |
Other peripherals | HyperTransport 2.0 technology (1 link) |
Electrical / Thermal parameters | |
V core | 1.2V / 1.25V |
Maximum operating temperature | 55°C - 72°C |
Thermal Design Power | 65 Watt |
Notes on AMD Athlon 64 X2 3800+ (Socket AM2, 65W, rev. F3) | |
In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. Thermal Design Power in the minimum P-state is 34.6 Watt | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
