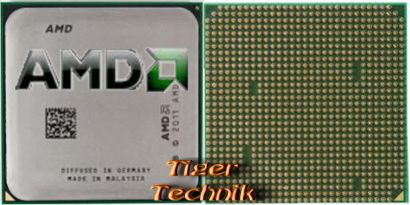

CPU Prozessor AMD Sempron 64 3200+ SDA3200IAA2CW FSB800 128KB Sockel AM2* c195

Technische Daten

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Sempron

Model number

3200+

CPU part numbers

SDA3200IAA2CW is an OEM/tray microprocessor; SDA3200CWBOX is a boxed processor with fan and heatsink; SDA3200CWWOF is a boxed processor without fan and heatsink

Stepping codes

LDB5F   LEDBF

Frequency

3200+ (rated); 1800 MHz (real)

Bus speed

Dual-channel 333 MHz DDR2 SDRAM Memory controller
One 800 MHz 16-bit HyperTransport link (1.6GT/s)

Clock multiplier

9

Package

940-pin lidded microPGA

Socket

Socket AM2

Architecture / Microarchitecture

Microarchitecture

K8

Processor core

Manila

Core stepping

F2

Manufacturing process

0.09 micron

Data width

64 bit

The number of CPU cores

1

The number of threads

1

Floating Point Unit

Integrated

Level 1 cache size

64 KB 2-way set associative instruction cache; 64 KB 2-way set associative data cache

Level 2 cache size

128 KB 16-way set associative exclusive cache

Multiprocessing

Uniprocessor

Features

MMX instructions, 3DNow! technology, SSE / Streaming SIMD Extensions, SSE2 / Streaming SIMD Extensions 2, SSE3 / Streaming SIMD Extensions 3, AMD64 / AMD 64-bit technology, EVP / Enhanced Virus Protection

Memory controller

The number of controllers: 1
Memory channels: 2
Supported memory: DDR2

Other peripherals

HyperTransport technology  ?

Electrical / Thermal parameters

V core

1.25V / 1.35V / 1.4V

Maximum operating temperature

55°C - 69°C

Thermal Design Power

59 Watt

Notes on AMD Sempron 3200+ (rev. F2, 59W, CW)

Processor supports x86-64 (64-bit) mode

In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. Thermal Design Power in the minimum P-state is 29.8 Watt
