Products description

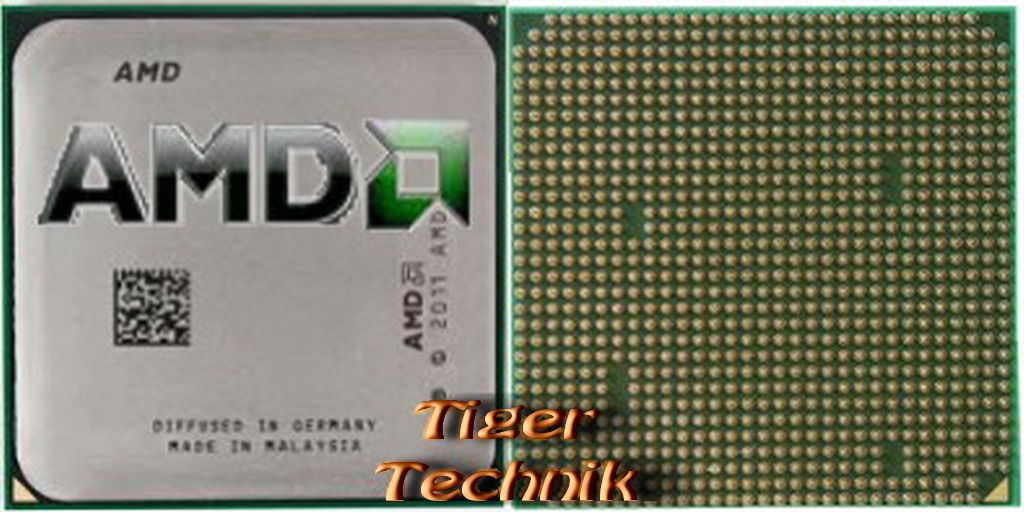

CPU AMD FX-4130 Black Edition FD4130FRW4MGU Quad Core 4x 3.8GHz Sockel AM3+ 4M L3 Cache
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD FX-Series |
Model number | FX-4130 |
CPU part numbers | FD4130FRW4MGU is an OEM/tray microprocessor; FD4130FRGUBOX is a boxed microprocessor with fan and heatsink |
Frequency | 3800 MHz |
Maximum turbo frequency | 3900 MHz |
Boosted P states [1] | #1: 3900 MHz, 1.4125V |
Package | 940-pin organic micro Pin Grid Array (UOC940) |
Socket | Socket AM3+ |
Size | 1.57" x 1.57" / 4cm x 4cm |
Introduction date | August 27, 2012 |
Price at introduction | $112 |
Architecture / Microarchitecture | |
Microarchitecture | Bulldozer |
Platform | Scorpius |
Processor core | Zambezi |
Core stepping | OR-B2 |
CPUID | 600F12 |
Manufacturing process | 0.032 micron Hi-K Metal Gate process with silicon-on-insulator (SOI) technology |
Die | 316mm2 |
Data width | 64 bit |
The number of CPU cores | 4 |
The number of threads | 4 |
Floating Point Unit | Integrated (shared between each pair of cores) |
Level 1 cache size | 2 x 64 KB 2-way set associative shared instruction caches; 4 x 16 KB 4-way set associative data caches |
Level 2 cache size | 2 x 2 MB 16-way set associative shared exclusive caches |
Level 3 cache size | 4 MB 32-way set associative shared cache |
Cache latency | 3 (L1 cache) |
Multiprocessing | Uniprocessor |
Features | MMX instructions; Extensions to MMX; SSE / Streaming SIMD Extensions; SSE2 / Streaming SIMD Extensions 2; SSE3 / Streaming SIMD Extensions 3; SSSE3 / Supplemental Streaming SIMD Extensions 3; SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4; SSE4a; AES / Advanced Encryption Standard instructions; AVX / Advanced Vector Extensions; FMA4 / 4-operand Fused Multiply-Add instructions; XOP / eXtended Operations instructions; AMD64 / AMD 64-bit technology; AMD-V / AMD Virtualization technology; EVP / Enhanced Virus Protection; Turbo Core 2.0 technology |
Low power features | Core C1, C1E, C6 and CC6 states; Package S3, S4 and S5 states; PowerNow! |
Low power P states [1] | #1: 3700 MHz, 1.2375V |
Memory controller | The number of controllers: 1 |
Other peripherals | HyperTransport 3.1 technology |
Electrical / Thermal parameters | |
Thermal Design Power | 125 Watt |
Notes on AMD FX-4130 | |
The processor has unlocked clock multiplier [1] - These characteristics were measured on a single CPU, and they can vary slightly for other processors with the same model number | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
