Products description

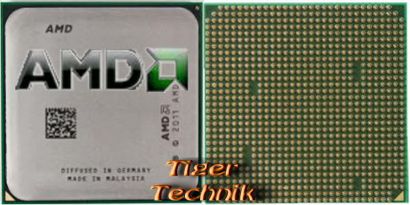

CPU AMD Phenom II X6 1055T HDT55TFBK6DGR Six Core 6x 2.8GHz Sockel AM3 AM2+
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Phenom II X6 |
Model number | 1055T |
CPU part numbers | HDT55TFBK6DGR is an OEM/tray microprocessor; HDT55TFBGRBOX is a boxed microprocessor with fan and heatsink |
Stepping codes | ACBBE CB CCBBE CB |
Frequency | 2800 MHz |
Maximum turbo frequency | 3300 MHz (3 cores or less) |
Bus speed | 667 MHz Memory controller; One 2000 MHz 16-bit HyperTransport link (4 GT/s) |
Clock multiplier | 14 |
Package | 938-pin organic micro-PGA |
Socket | Socket AM3 |
Fan/heatsink | AV-Z7UH40Q001-4909 |
Introduction date | April 27, 2010 |
Price at introduction | $199 |
Architecture / Microarchitecture | |
Microarchitecture | K10 |
Platform | Leo |
Processor core | Thuban |
Core stepping | PH-E0 |
CPUID | 100FA0 |
Manufacturing process | 0.045 micron silicon-on-insulator (SOI) technology |
Die | 346mm2 |
Data width | 64 bit |
The number of CPU cores | 6 |
The number of threads | 6 |
Floating Point Unit | Integrated |
Level 1 cache size | 6 x 64 KB 2-way set associative instruction caches; 6 x 64 KB 2-way set associative data caches |
Level 2 cache size | 6 x 512 KB 16-way set associative exclusive caches |
Level 3 cache size | Shared 6 MB 48-way set associative cache |
Cache latency [1] | 3 (L1 cache); 13 (L2 cache); 48 (L3 cache) |
Multiprocessing | Uniprocessor |
Extensions and Technologies | MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions; SSE2 / Streaming SIMD Extensions 2; SSE3 / Streaming SIMD Extensions 3; SSE4a; AMD64 / AMD 64-bit technology; AMD-V / AMD Virtualization technology; Turbo Core technology |
Security Features | EVP / Enhanced Virus Protection |
Low power features | Cool'n'Quiet 3.0; Core C1 and C1E states; Package S0, S1, S3, S4 and S5 states |
Integrated peripherals / components | |
Integrated graphics | None |
Memory controller | The number of controllers: 1 |
Other peripherals | HyperTransport 3 technology |
Electrical / Thermal parameters | |
V core | 1.15V - 1.475V (at rated frequency); 1.25V - 1.475V (Turbo Core mode); 1V - 1.225V (Minimum performance state) |
V NorthBridge | 1.05V - 1.175V |
Maximum operating temperature | 55°C - 62°C |
Thermal Design Power | 125 Watt |
Notes on AMD Phenom II X6 1055T (125W) | |
On socket AM2+/AM3 platforms in the minimum performance state the processor runs at 800 MHz core voltage and has TDP 55.4 Watt [1] - These characteristics were measured on a single CPU, and they can vary slightly for other processors with the same model number | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
