CPU AMD A8-3870K AD3870WNZ43GX Quad Core 4x3.0GHz Sockel FM1 AMD Grafik* c667

Products description

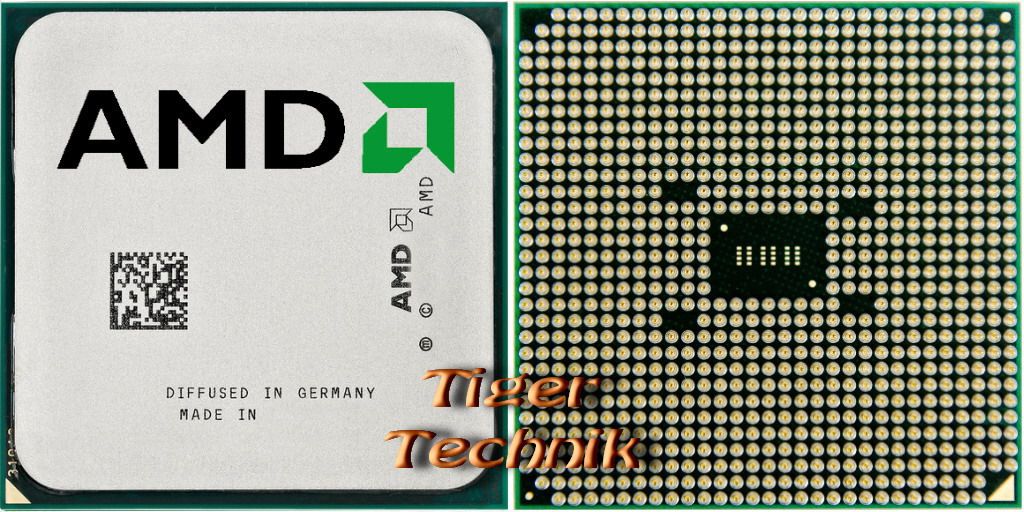

CPU AMD A8-3870K AD3870WNZ43GX Quad Core 4x3.0GHz Sockel FM1 AMD Grafik

Technische Daten
Type	CPU / Microprocessor
Market segment	Desktop
Family	AMD A8-Series
Model number	A8-3870K
CPU part numbers	AD3870WNZ43GX is an OEM/tray microprocessor; AD3870WNGXBOX is a boxed microprocessor with fan and heatsink
Frequency	3 GHz / 3000 MHz
Package	905-pin organic lidded micro Pin Grid Array (UOF905)
AMD Package numbers	31012
Socket	Socket FM1
Introduction date	Dec 20, 2011
Price at introduction	$135
Architecture / Microarchitecture
Instruction set	x86
Microarchitecture	K10
Platform	Lynx
Processor core	Llano
Core stepping	LN-B0
CPUID	300F10
Manufacturing process	0.032 micron; 1178 million transistors
Die	227mm2
Data width	64 bit
The number of CPU cores	4
The number of threads	4
Floating Point Unit	Integrated
Level 1 cache size	4 x 64 KB instruction caches; 4 x 64 KB data caches
Level 2 cache size	4 x 1 MB
Level 3 cache size	None
Cache latency	3 (L1 cache); 21 (L2 cache)
Multiprocessing	Uniprocessor
Extensions & Technologies	MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions; SSE2 / Streaming SIMD Extensions 2; SSE3 / Streaming SIMD Extensions 3; SSE4a; AMD64 / AMD 64-bit technology; AMD-V / AMD Virtualization technology
Security Features	EVP / Enhanced Virus Protection
Low power features	PowerNow!
Integrated Graphics Processing Unit
GPU Type	Radeon HD 6550D
Shader cores	400
Base frequency (MHz)	600
Integrated peripherals / components
Memory controller	The number of controllers: 1 Memory channels (per controller): 2 Memory channels (total): 2 Supported memory: DDR3-1866
Other peripherals	PCI Express 2.0 Unified Video Decoder 3.0
Electrical / Thermal parameters
V core	0.45V - 1.4125V
Maximum operating temperature	72.7°C
Thermal Design Power	100 Watt
Notes on AMD A8-3870K
The processor has unlocked clock multiplier
