Foxconn PC 915A05-PL-6LS Mainboard 915PL7AE-S + Blende* m178

Foxconn PC 915A05-PL-6LS Mainboard

915PL7AE-S + Blende



Technische Daten:



Processor

Support socket T, Intel® Pentium® 4 processors



Chipset

Intel® 915PL + Intel® ICH6



Front Side Bus

800 MHz FSB



Memory

Support Max. 2GB, Dual Channel 400MHz / 333MHz DDR SDRAM



VGA on Die

N/A



Expansion Slots

1 x PCIe x 16, 1 x FGE 8X, 1 x PCIe x 1, 3 x PCI



IDE

ATA 100 x1



Serial ATA(SATA)/RAID

Support 4 Serial ATA 150 drives



Audio

Realtek ALC655; 5.1 channel audio



LAN

RTL8100C, 10/100 M LAN



IEEE1394

N/A



Back Panel I/O Ports

1 x PS/2 mouse

1 x RJ45

1 x PS/2 keyboard

1 set 5.1 channel Audio jack

1 x parallel

4 x USB 2.0

1 x COM1

1 x coax. S/PDIF out

Internal I/O Connectors

2 x USB 2.0 headers

1 x S/PDIF out header (reserve)

1 x buzzer

1 x CD-IN header

1 x IrDA header

1 x AUX IN header (reserve)

1 x Front Audio

1 x COM2 (reserve)

1 x Speaker heade



BIOS Features

4Mb flash ROM, Award BIOS, PnP1.0a, DMI 2.0, WfM 2.0, SMBIOS 2.3, ACPI 1.0b



Standards/Manageability

PCI 2.3, USB2.0; WfM 2.0, DMI 2.0



Special Features

STR (Suspend-to-RAM), STD (Suspend-to-Disk), Super Recovery, SuperBoot, Super BIOS-Protect, BIOS SuperSpeed



Form Factor

ATX (12” x 8.6)





Lieferumfang

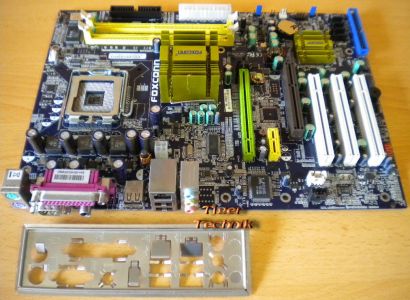

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

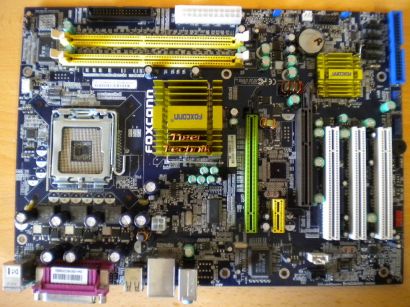

Abbildung ähnlich
