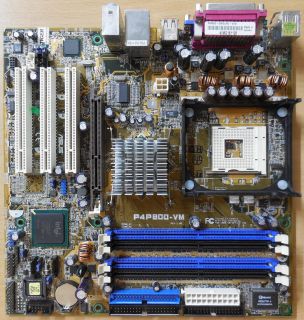

ASUS P4P800-VM Rev 1.06 Mainboard +Blende ATX Sockel 478 SATA AGP8X IDE DDR*m537

ASUS P4P800-VM Rev 1.06 Mainboard + Blende ATX Sockel 478 SATA AGP 8X IDE DDR Retro

Technische Daten

CPU

Socket 478 for Intel® Pentium® 4 / Celeron with speeds up to 3.2GHz

Supports Intel® Hyper-Threading technology

New power design supports next generation Intel Prescott CPU

Chipset

Intel 865G GMCH

Intel ICH5

Front Side Bus (FSB)

800/533/400 MHz

Memory

Dual-channel memory architecture

4 x 184-pin DDR DIMM sockets for up to 4GB memory

Supports PC3200/PC2700/PC2100 unbuffered non-ECC DDR DIMMs

VGA

Intel® Extreme Graphics 2

Expansion slots

1 x AGP 8X

3 x PCI

Storage

2 x UltraDMA 100/66/33 connectors

2 x Serial ATA connectors

Audio       ADI AD1980 SoundMAX 6-channel audio CODEC

LAN       Intel 82562EZ LAN PHY supports 10/100 Fast Ethernet

Special features

ASUS MyLogo

ASUS CrashFree BIOS 2

ASUS EZ Flash

Wake-on-Ring/LAN/USB/Keyboard/Mouse

Suspend-to-RAM (STR)

Suspend-to-Disk (STD)

HW monitoring

Winbond 83627THF supports fan sensors, and temperature and voltage monitoring

Rear panel I/O

1 x Parallel port

1 x Serial port

1 x VGA port

1 x PS/2 keyboard port

1 x PS/2 mouse port

4 x USB 2.0 ports

1 x RJ-45 port

Line In/Line Out/Microphone ports

Internal I/O

2 x USB 2.0 connectors for 4 additional USB ports

1 x Serial port 2 (COM2) connector

1 x 3-pin CPU FAN connector

1 x 3-pin Chassis FAN connector

1 x 20-pin ATX power connector

1 x 4-pin ATX 12V power connector

1 x GAME/MIDI connector

1 x Front Panel connector

1 x S/PDIF Out connector

1 x MDC connector

1 x CD audio connector

1 x AUX audio connector

1 x Front panel audio connector

2 x SATA I connectors

2 x IDE connectors

1 x Floppy disk FDD connector

1 x Clear CMOS Jumper

1 x Chassis Intrusion connector

1 x USBPW12 Jumper

1 x USBPW34 Jumper

1 x USBPW56 Jumper

1 x USBPW78 Jumper

BIOS features

4Mb Flash ROM, AMI BIOS, ACPI, PnP, DMI2.0, Trend Chip Away Virus (TCAV), ASUS EZ Flash, CrashFree BIOS 2, ASUS MyLogo

Industry standard

PCI 2.2, USB 2.0

Manageability

WfM 2.0, DMI 2.0, WOL/WOR by PME

Power Requirement

ATX power supply (with 4-pin 12V plug)

Form Factor       ATX form factor: 9.6 in x 9.6 in (24.5 cm x 24.5 cm)

Lieferumfang

Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
