Gigabyte GA-686BX Rev 2.2 Mainboard +Blende 3x ISA Slot 1 Intel 440BX AGP* m578

Gigabyte GA-686BX Rev 2.2 Mainboard + Blende

3x ISA Slot 1 Intel 440BX AGP

Technische Daten

CPU

Intel Pentium® II / III Processor

350MHz-550MHz(for 100MHz system Bus).

233-333MHz (for 66MHz system buse setting).

Slot 1 Socket for Future Expansion

Chipset

Intel 82440 BX AGPset

Winbond 83977 I/O (1Mb/S)

Winbond 83781 Health Chip

Memory

CPU Built-in 256KB/512KB L2 cache System Memory

4 x 100MHz 168-pin 3.3v DIMM sockets support

Supports 8/16/32/64/128/256 MB DIMM Module

Supports EDO RAM, SDRAM (Support ECC, 72 bit)

Supports 8MB to 1GB DRAM Size

Expansion Slots

4 x PCI 32-bit slots, PCI 2.2 compliant

3 x ISA 16-bit slots

1 x AGP (1x & 2x Mode,66/133MHz) slot

Support Creative PCI Sound Card SB-Link™

I/O Controller

1x floppy port (360KB-2.88MB)

2x serial ports (16550 high-speed)

1x parallel port (EPP/ECP)

PS/2 Keyboard + PS/2 Mouse + 2x USB

H/W Monitoring

Temperature Sensor Under Processor Heatsink

Speaker Alarm When CPU Overheats or CPU Fan Failure

Auto Speed Down When CPU Overheats

System Health Status Detect & Report by BIOS,LDCM® & SIV

Hardware Detects +/- 5v, +/-12v, CMOS Battery Voltage & CPU Voltage

BIOS

2 Mbit (256KB) FLASH RAM

Award PCI BIOS with Green, PnP, DMI, INT13 (HD>8.4)and Anti-Virus Functions

LS120, ZIP, ATAPI CD-ROM, IDE #1, #2, #3, #4 Bootable

Auto-detect & Report System Health Status

Form Factor

ATX Form Factor, 4 layer PCB

ATX Connector on Board

Double Deck ATX Back Panel

Power

Power On by PS/2 Keyboard, PS/2 Mouse, LAN,RTC Alarm, Modem Ring & Soft-Power Switch

Power Off by Windows 95 Shut down & Soft-Power Switch

AC Recovery On/Off Control

Supports Fan Stop During Suspend Mode

Supports 3 Level ACPI LED

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

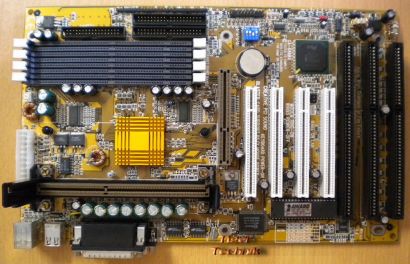

Abbildung ähnlich
