Asus P5E-VM DO Rev 1.02G Mainboard Sockel 775 Intel Q35 DDR2 PCIe VGA SATA2*m867

Asus P5E-VM DO Rev 1.02G Mainboard Sockel 775 Intel Q35 DDR2 PCIe

Technische Daten

CPU

LGA775 socket for Intel® Core™2 Quad / Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 Processors

Compatible with Intel® 05B/05A/06 processors

Support Intel® next generation 45nm Multi-Core CPU

Chipsatz

Intel® Q35 / ICH9DO support Intel® Active Management Technology

Front Side Bus

1333 / 1066 / 800 MHz

Memory

4 x DIMM, max. 8GB, DDR2 1066* / 800 / 667 MHz, non-ECC, un-buffered memory

Dual channel memory architecture

*The Chipset offically supports 800 / 667 memory; for the 1066MHz memory support please check the Memory QVL at the Asus Website.

Expansion Slots

1 x PCIe x16

1 x PCIe x1

2 x PCI

VGA

Intel® Graphics Media Accelerator 3100 (Intel® GMA 3100) integrated

High Definition Video Processing with max. resolutions to 2048 x 1536 bpp(@ 75Hz)

Max. shared memory of 384MB (Only support when installed 1G memory)

Storage

by Southbridge

6 x SATA 3.0 Gb/s ports (Support RAID 0, 1, 0+1, 5)

by JMicron® JMB368 PATA controller

1 x UltraDMA 133/100/66 for up to 2 PATA devices

LAN

Intel® 82566DM PCIe Gigabit LAN controller

Audio

Realtek® ALC883, 8-channel High-Definition Audio CODEC

Support Jack-detection, Enumeration, Multi-streaming

IEEE 1394

Agree® 1394 controller supports 2 x IEEE 1394a ports (one at midboard; one at back panel)

USB

12 x USB 2.0 ports (8 ports at mid-board, 4ports at back panel)

TPM

Infineon® TPM chip 9635 TT 1.2 onboard

Special Features

ASUS Quiet Thermal Solution: ASUS AI Gear 2; ASUS AI Nap; ASUS Advenced Q-Fan

ASUS Crystal Sound: ASUS Noise Filter

ASUS EZ DIY: ASUS Q-Connector; ASUS O.C. Profile; ASUS CrashFree BIOS 3; ASUS EZ Flash 2

Other ASUS Special Features

ASUS MyLogo 2

Overclocking Features

Precision Tweaker: vCore Adjustable CPU voltage at 0.0125V increment; vDIMM 4-step DRAM voltage control

SFS (Stepless Frequency Selection): FSB tuning from 200MHz up to 800MHz at 1MHz increment; Memory tunning from 667MHz up to 1066 MHz; PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment

Overclocking Protection: ASUS C.P.R. (CPU Parameter Recall)

Back Panel I/O Ports

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x VGA port

1 x Parallel port

1 x COM Port

1 x IEEE1394a

1 x RJ45 port

4 x USB 2.0/1.1

8-channel Audio I/O

Internal I/O Connectors

4 x USB connectors support additional 8 USB ports

1 x Floppy disk drive connector

1 x IDE connector

6 x SATA connectors

1 x CPU Fan connector

1 x Chassis Fan connector

1 x Power Fan connector

1 x IEEE1394a connector

Front panel audio connector

1 x S/PDIF Out Header

Chassis Intrusion connector

CD audio in

24-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

System Panel

BIOS

32 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a

Intel® vPro technology support

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Form Factor

uATX Form Factor, 9.6"x 9.6" (24.4cm x 24.4cm)

Lieferumfang

Nur das Mainboard * ohne weiteres Zubehör * gebraucht *

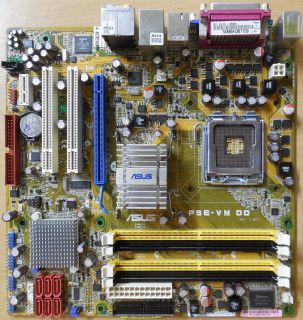

Abbildung ähnlich
